TerraX

Simplify, Control, Thrive:

The perfect All-in-One Controller Solution you need

What is TerraX?

TerraX is an All-in-One Utility Controller effortlessly manages scheduling, device control, valve operations, and sensor integration, empowering efficient management of diverse utility processes within a single integrated system. Its standout feature lies in its ability to be fully customized to meet the unique needs of different industries.

One of the key strengths of TerraX is its connectivity options. While other similar products in the market may offer limited connectivity, TerraX stands out by offering a wide range of options. The current model includes 4G and WiFi connectivity, enabling seamless integration into existing networks. However, the future model of TerraX will take it a step further by incorporating Bluetooth, and LoRA connectivity, making it versatile and adaptable to various environments.

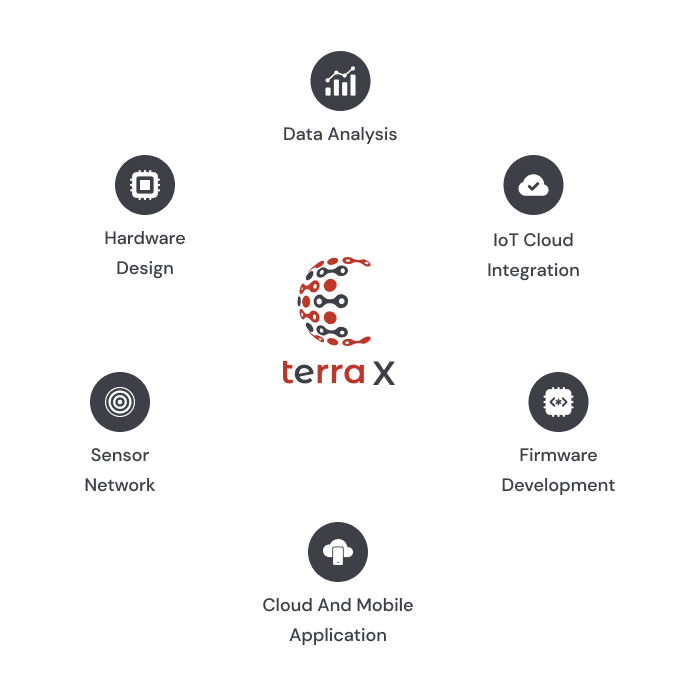

TerraX - A Complete Package

TerraX is a powerful combination of hardware and software applications, designed to revolutionize the way industries manage and monitor their operations.

Hardware

Connectivity

  • 4G: Integrated SIM7600E module for robust cellular connectivity.
  • Ethernet: Wired Ethernet option for reliable data communication.

Sensor Capabilities

  • Detection of up to seven analog sensors, including 4-20mA variants like pH, ORP, Temperature, Pressure, Moisture, Water Meter, etc.
  • Support for three digital sensors, such as Flow Switch, Rain Sensor, Pulse Water Meter, etc.

GPIO and Expansion

  • Ten GPIO pins available to facilitate external display, LEDs, and additional relay/valve drive boards

LoRaWAN Integration

  • Facilitates communication with LoRaWAN-compatible devices through the integration of LoRaWAN transceivers via the SPI terminal

Relay and Solenoid Valve Connectivity

  • Four dry contact relays, each supporting up to 16 A, 230 VAC.
  • Eight valve connectors compatible with 12/24/230 VAC solenoid valves.

Communication Interfaces

  • Two RS485 Modbus terminals for seamless communication setup.
  • SPI (Serial Peripheral Interface) Communication Terminal for flexible device interaction.

Software

Back End and Front End

  • Python-based backend handles data processing and communication.

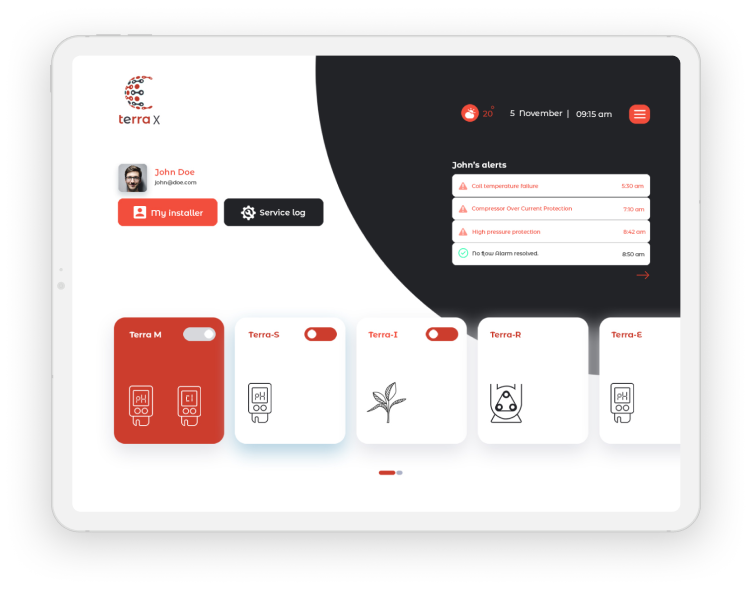

  • Flutter-based user interface offers intuitive control via a mobile application.

Software and Scripting

  • Operating System: Balena OS.
  • Device script development using C Programming.

Unique features of TerraX

RS485 Modbus Communication

Establish bidirectional communication, configuration, or synchronization with RS485 Modbus protocol devices as Master and Slave.

Connect up to 32 Modbus devices in series to one RS485 terminal, accommodating a total of 64 slave devices.

Integration and Compatibility

Integrate relay/valve connector terminals with analog/digital input terminals for unified control

Device Control and Scheduling

Seamlessly turn on/off and schedule single-phase electric devices for optimal efficiency.

Expansion Capabilities

Ten GPIO pins enable the connection of external displays, LEDs, relay/valve drive boards, and more, allowing tailored expansions.

Sensor Support

Wide-ranging compatibility with 4-20mA analog sensors (pH, ORP, Temperature, Pressure, Moisture, Water Meter, etc.).

Support for digital sensors (Flow Switch, Rain Sensor, Pulse Water Meter, etc.) enhances process monitoring.

LoRaWAN Integration

Facilitates communication with LoRaWAN-compatible devices through the integration of LoRaWAN transceivers via the SPI terminal.

Applications of TerraX

Industrial Water Management

Efficiently control pumps, valves, and sensors in industrial water systems for optimized operations.

Agricultural Irrigation

Automate irrigation processes by managing solenoid valves, monitoring moisture levels, and more

Commercial Building Automation

Implement intelligent water control and monitoring in commercial spaces for sustainability and cost savings.

Residential Water Conservation

Empower homeowners to schedule water-related devices and track usage for eco-friendly living.

Industrial Water Management

Efficiently control pumps, valves, and sensors in industrial water systems for optimized operations.

Agricultural Irrigation

Automate irrigation processes by managing solenoid valves, monitoring moisture levels, and more

Commercial Building Automation

Implement intelligent water control and monitoring in commercial spaces for sustainability and cost savings.

Residential Water Conservation

Empower homeowners to schedule water-related devices and track usage for eco-friendly living.
